Best Aluminum Sheet for Marine Use

What Makes an Aluminum Sheet Suitable for Marine Use?

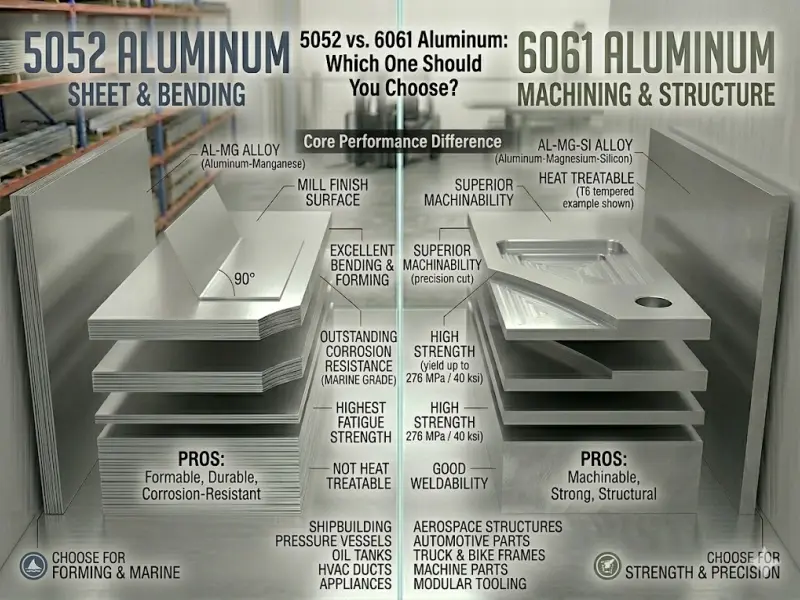

5083 vs 5052 vs 6061 for Marine Projects

Three alloys are often considered when selecting aluminum for marine fabrication.

Alloy	Corrosion Resistance	Strength	Weldability	Formability	Marine Direction
5052	★★★★★	★★★★	★★★★★	★★★★★	Very Good
5083	★★★★★	★★★★★	★★★★★	★★★★	Excellent
6061	★★★	★★★★★	★★★	★★★	Selected structural parts

5083 aluminum sheet is often preferred where high strength and excellent seawater resistance are important.

5052 aluminum sheet is useful when forming and corrosion resistance are important.

6061 aluminum offers high strength, but its suitability should be evaluated carefully for continuously immersed or highly corrosive marine environments.

The right alloy depends on the location and function of the part.

Which Alloy Should You Choose?

A simple selection method can help.

Need strong seawater resistance?

→ Consider 5083.

Need easier forming?

→ Consider 5052.

Need a balance of strength and fabrication?

→ Consider 5083 or 5052 based on the design.

Need high strength for a specific structural component?

→ 6061 may be considered where the service environment and design allow it.

This makes alloy selection more practical than choosing a material only by tensile strength.

Salt Water Changes the Material Choice

Freshwater and seawater are not the same environment.

Environment	Corrosion Concern	Material Consideration
Freshwater	Lower	General marine alloys
Coastal air	Moderate	Good corrosion resistance
Saltwater splash zone	High	Marine-grade alloy
Direct seawater exposure	Very High	Carefully selected marine alloy
Offshore environment	Very High	Material and protection both matter

For marine projects, corrosion resistance should be considered together with coating, design, drainage, fasteners, and welding.

Marine Aluminum Sheet by Location

The same alloy does not have to be used for every part of a boat.

Tanks

Marine tanks need careful material selection.

The aluminum alloy should match the liquid being stored and the service conditions.

Thickness Should Be Selected by the Job

There is no single thickness that works for every marine project.

Thickness	General Direction
1.0–1.5 mm	Lightweight interior parts
2.0–3.0 mm	General panels
4.0–6.0 mm	Heavy-duty fabricated parts
8.0–12 mm	Structural or high-load components
15 mm+	Special heavy-duty requirements

The actual thickness should be based on engineering calculations.

Hull size, span, loads, support spacing, and design requirements all affect the final choice.

Why Lightweight Aluminum Is Useful on Boats

Weight has a direct effect on marine equipment.

A lighter structure can help improve:

→ Fuel efficiency

→ Payload capacity

→ Handling

→ Acceleration

→ Transport cost

→ Installation efficiency

Aluminum can provide a useful combination of low density and mechanical performance.

This is one reason aluminum remains popular for many marine structures.

Weldability Is a Key Buying Point

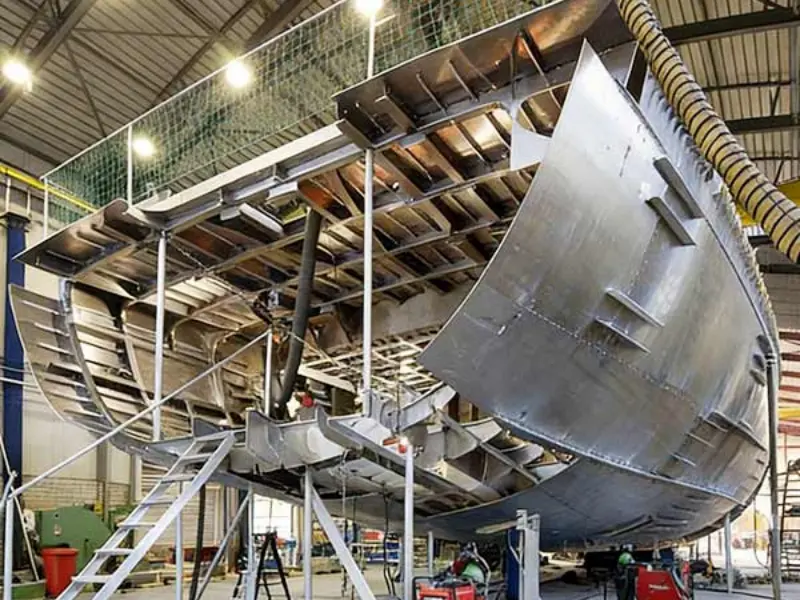

Marine aluminum sheets are often welded during fabrication.

A material may have good mechanical properties but still be difficult to fabricate.

Before purchasing, check:

✓ Alloy

✓ Temper

✓ Welding process

✓ Filler metal

✓ Heat input

✓ Joint design

✓ Post-welding requirements

For welded marine structures, the strength of the heat-affected zone should also be considered during design.

H116 and H321 Marine Aluminum

For some marine applications, buyers may specifically ask for tempers such as H116 or H321.

These tempers are associated with aluminum products intended for marine and structural applications.

Temper	General Direction
O	Soft and highly formable
H14	Moderate strength and good forming
H116	Marine-oriented plate condition
H321	Marine/structural applications
T6	High strength, but application-dependent

Temper selection should be based on the alloy, thickness, forming process, and final service environment.

Smooth Sheet or Tread Plate?

The surface design can also be selected according to the marine application.

Surface	Main Feature	Typical Direction
Smooth	Clean and easy to fabricate	Hulls and panels
Brushed	Decorative appearance	Interior areas
Anodized	Surface protection and appearance	Selected components
Tread	Improved foot grip	Decks and walkways
Stucco embossed	Textured appearance	Special panels

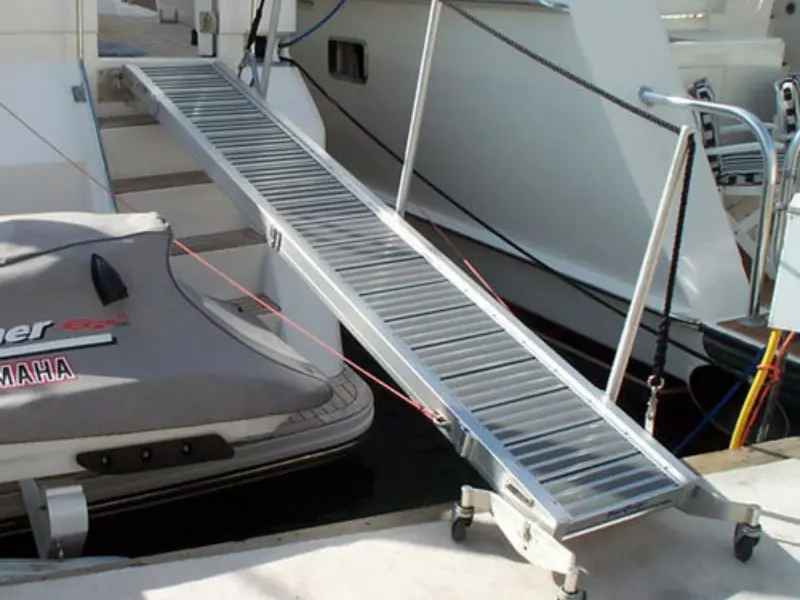

For areas where people walk, tread aluminum can offer a practical advantage.

Marine Aluminum Sheet vs Steel

Aluminum and steel have different characteristics.

Factor	Aluminum	Steel
Weight	Lower	Higher
Corrosion behavior	Good with suitable alloy	Requires protection
Fabrication	Good	Good
Strength	Good	Very high
Maintenance	Often easier	Depends on coating system
Marine use	Widely used	Also widely used

The best choice depends on the vessel design, required strength, budget, and operating environment.

Marine Aluminum Sheet vs Stainless Steel

Stainless steel is highly corrosion resistant in many environments, but it is much heavier than aluminum.

Feature	Aluminum	Stainless Steel
Density	Low	High
Weight saving	Excellent	Limited
Corrosion resistance	Very Good with suitable alloy	Excellent
Welding	Requires suitable process	Good
Cost	Often competitive	Usually higher material cost
Large structures	Weight advantage	Higher weight

For weight-sensitive marine structures, aluminum can provide an important advantage.

Surface Protection Is Still Important

Good marine aluminum does not mean that surface protection can be ignored.

A complete system should consider:

Aluminum alloy

↓

Surface preparation

↓

Coating or anodizing

↓

Drainage

↓

Fastener selection

↓

Electrical isolation

↓

Regular inspection

This is especially important when aluminum is connected to other metals.

Avoiding Galvanic Corrosion

One important issue in marine fabrication is contact between dissimilar metals.

For example, aluminum may be connected with:

• Stainless steel
• Carbon steel
• Copper
• Brass

A Simple Marine Material Selection Flow

You can also add this visual-style section to the page:

Marine Environment

↓

Freshwater / Coastal / Seawater / Offshore

↓

Required Strength

↓

Required Formability

↓

Welding Method

↓

Alloy Selection

↓

Temper Selection

↓

Thickness Selection

↓

Surface Protection

↓

Final Aluminum Sheet

This type of content is useful because it answers the buyer’s real question: “Which aluminum sheet should I buy?”

Common Marine Aluminum Combinations

Different components may use different materials.

Marine Component	Possible Aluminum Choice

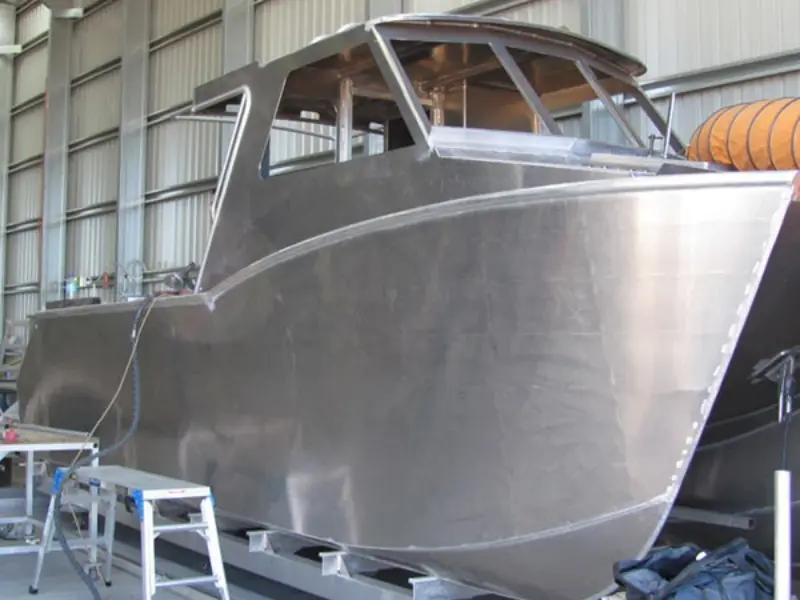

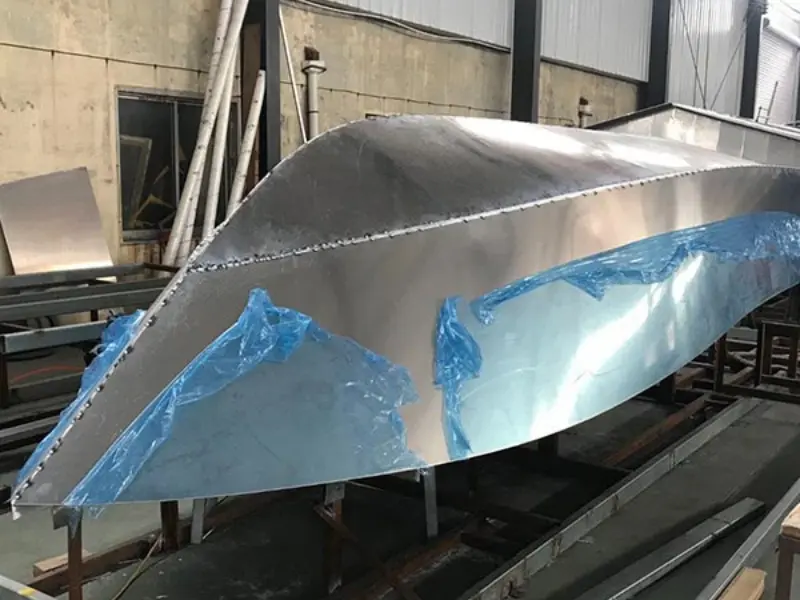

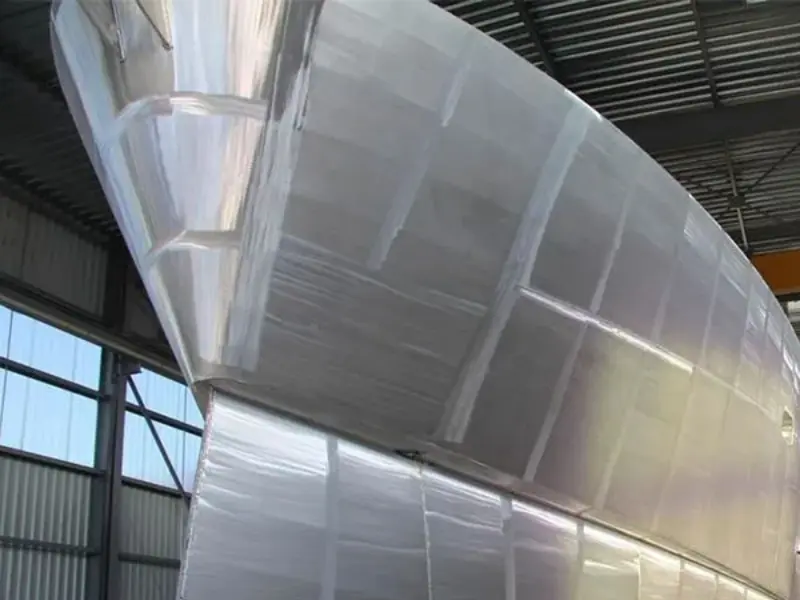

Boat hull	5083
Hull plate	5083
Formed panels	5052
Deck plate	5052 / 5083
Tread deck	5052 / 5083
Marine tank	Alloy selected by contents
Interior panels	5052
Structural components	5083 / application-specific alloy
Machined parts	6061 for suitable locations

These are general material directions. Engineering requirements should always control the final selection.

How to Buy Aluminum Sheet for Marine Fabrication

Price should not be the only factor.

A lower-priced sheet may not provide the right alloy, temper, tolerance, or surface quality.

What Should Be Included in a Marine Aluminum RFQ?

A clear inquiry can save time during quotation.

Item	Example
Product	Marine Aluminum Sheet
Alloy	5083
Temper	H116
Thickness	6 mm
Width	1500 mm
Length	3000 mm
Surface	Mill finish
Quantity	20 MT
Standard	Customer requirement
Application	Boat hull
Certificate	Required

For special projects, drawings and technical specifications can be attached to the inquiry.

Small Details That Can Improve Project Results

Many purchasing problems come from small details rather than the alloy itself.

Before production, confirm:

✓ Thickness tolerance

✓ Width tolerance

✓ Length tolerance

✓ Flatness

✓ Edge condition

✓ Surface scratches

✓ Packaging method

✓ Material certificate

✓ Batch consistency

For large marine projects, consistent material quality is especially important.

Custom Marine Aluminum Sheet Supply

Our factory can supply aluminum sheets and plates for different marine fabrication needs.

Available options can include:

Item	Options
Alloy	5052 / 5083 / 6061 and others
Temper	O / H14 / H116 / H321 / T6 and others
Thickness	Customized
Width	Customized
Length	Customized
Surface	Mill / anodized / coated / tread
Shape	Sheet / plate / cut-to-size
Edge	Mill / cut edge
Packaging	Export seaworthy packaging
Certification	Available according to order

For large orders, the material can be produced according to customer drawings and project requirements.

A Better Way to Compare Marine Aluminum Suppliers

Instead of comparing suppliers only by price per ton, use a wider comparison.

Comparison Point	Supplier A	Supplier B	Supplier C
Alloy consistency	✓	✓	✓
Temper options	✓	—	✓
Custom size	✓	✓	—
Marine-grade options	✓	✓	✓
Inspection	✓	—	✓
Export packaging	✓	✓	✓
Custom cutting	✓	—	✓
Technical support	✓	—	✓

This gives buyers a clearer picture of the actual supply value.
