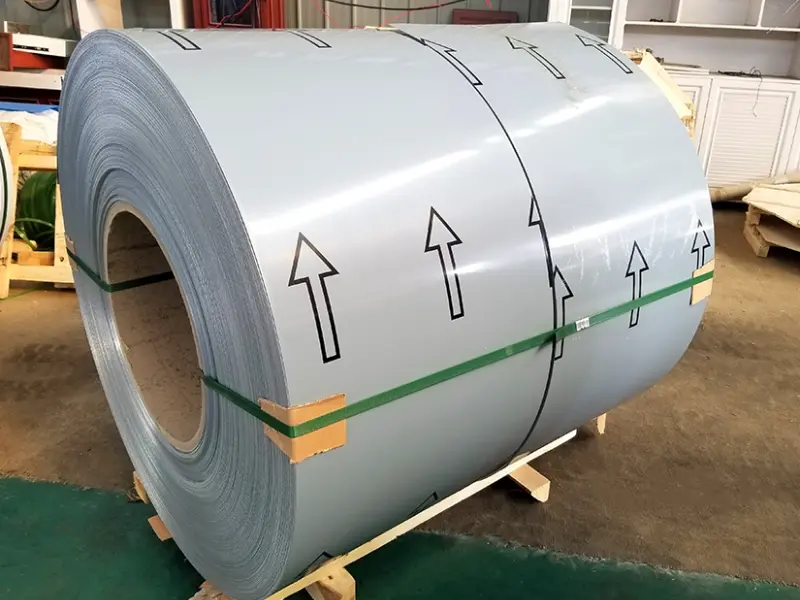

PVDF color coated aluminum coil is aluminum coil with a fluoropolymer paint finish. PVDF stands for polyvinylidene fluoride. This coating provides exceptional weather resistance and color retention. The material is ideal for outdoor architectural applications.
The coating process applies paint to the aluminum surface before fabrication. PVDF Color Coated Aluminum Coil ensures complete coverage and consistent quality. PVDF coatings meet the highest industry standards for durability .
PVDF Color Coated Aluminum Coil Alloy Types
3003 coated Aluminum Alloy
3003 is the most common base material for PVDF coated coils. It contains manganese for strength and corrosion resistance. This alloy forms easily and accepts coatings well.
Standard specifications:
- Thickness: 0.2–1.5 mm
- Temper: H14, H24, H16, H18
- Tensile strength: 140–180 MPa (H14)
3004 Coated Aluminum Alloy
3004 adds magnesium to the manganese base. This increases strength while maintaining good formability. It performs well in structural applications.
Standard specifications:
- Thickness: 0.25–1.2 mm
- Temper: H24, H34
- Tensile strength: 160–200 MPa (H24)
3105 Coated Aluminum Alloy
3105 balances manganese and magnesium content. It offers excellent formability for complex shapes. This alloy is popular for roofing and gutter applications.
Standard specifications:
- Thickness: 0.3–1.5 mm
- Temper: H14, H24, H16
- Tensile strength: 140–170 MPa (H14)
5005 Coated Aluminum Alloy
5005 contains magnesium as the main alloying element. It provides good corrosion resistance and weldability. This alloy suits marine and coastal applications.
Standard specifications:
- Thickness: 0.2–2.0 mm
- Temper: H14, H24, H32
- Tensile strength: 130–170 MPa (H14)
PVDF Color Coated Aluminum Coil Specifications
Coating Thickness
| Layer | Thickness | Function |
|---|---|---|
| Primer | 5–7 microns | Adhesion, corrosion protection |
| Topcoat (PVDF) | 20–25 microns | Weather resistance, color |
| Clear coat (optional) | 3–5 microns | Extra UV protection, gloss |
Total dry film thickness must be at least 25 microns for PVDF coatings .
Coating Types
| Type | Features | Best For |
|---|---|---|
| Traditional PVDF | 70% Kynar 500 resin | General exterior use |
| Nano PVDF | Self-cleaning properties | High-pollution areas |
| Metallic PVDF | Metallic flake appearance | Premium architectural |
| Matte PVDF | Low gloss finish | Modern designs |
PVDF Color Coated Aluminum Coil Product Specifications
Standard Dimensions
| Parameter | Range | Common Options |
|---|---|---|
| Thickness | 0.08–3.0 mm | 0.4, 0.5, 0.6, 0.8, 1.0, 1.2 mm |
| Width | 30–2200 mm | 1000, 1200, 1240, 1250, 1500, 1600 mm |
| Coil Weight | 0.5–5.0 tons | 2.5–3.0 tons standard |
| Inner Diameter | 150–610 mm | 405 mm, 505 mm, 508 mm |
Color Options
| Category | Examples |
|---|---|
| Solid colors | White, black, gray, blue, green, red |
| Metallic | Silver, champagne, bronze, copper |
| Wood grain | Oak, walnut, teak, cherry patterns |
| Stone patterns | Marble, granite textures |
| Custom | RAL colors, Pantone matching |
Performance Standards
AAMA 2605 Compliance
PVDF coatings meeting AAMA 2605 standards provide the highest performance level . Requirements include:
| Test | Requirement |
|---|---|
| Color retention | ≤ 5 ΔE after 10 years Florida exposure |
| Gloss retention | ≥ 50% after 10 years |
| Chalk resistance | Rating ≥ 8 |
| Humidity resistance | 4,000 hours no blistering |
| Salt spray resistance | 3,000+ hours |
Mechanical Properties
| Property | Test Method | Requirement |
|---|---|---|
| Pencil hardness | ASTM D3363 | ≥ 2H |
| Impact resistance | ASTM D2794 | No cracking at 50 kg/cm |
| Flexibility | T-bend test | ≤ 2T |
| Adhesion | Cross-cut test | Grade 1 |
| MEK resistance | Double rub | ≥ 100 cycles |
Product Types by Application

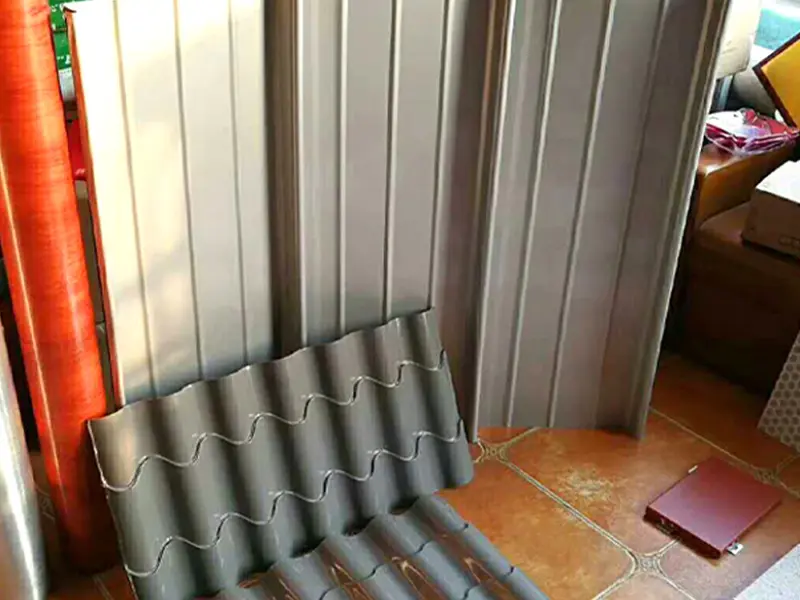

1. Roofing Coil
Roofing coil produces standing seam and metal roof panels. It withstands extreme weather conditions.
Specifications:
Warranty: 20–30 years
Alloy: 3003, 3004, 3105
Thickness: 0.5–1.2 mm
Temper: H24, H26
Coating: PVDF 25+ microns
2. Wall Cladding Coil
Wall cladding coil creates exterior facade panels. It provides both protection and aesthetics.
Specifications:
Finish: Solid, metallic, or custom
Alloy: 3003, 5005
Thickness: 0.6–2.0 mm
Temper: H14, H24
Width: up to 2000 mm
3. Gutter Coil
Gutter coil forms seamless rainwater collection systems. It requires excellent formability.
Specifications:
- Alloy: 3105, 3003
- Thickness: 0.6–0.9 mm
- Temper: H24, H16
- Width: 11 inch, 15 inch, or custom
- Coating: PVDF both sides
4. Ceiling Coil
Ceiling coil produces lay-in and clip-in ceiling panels. It accepts various perforation patterns.
Specifications:
- Alloy: 3003
- Thickness: 0.4–0.8 mm
- Temper: H14, H16
- Surface: Matte or high gloss
- Colors: White, black, custom
5. Shutter Door Coil
Shutter door coil makes rolling security doors and window shutters. It balances strength and weight.
Specifications:
- Alloy: 3004, 3105
- Thickness: 0.3–0.6 mm
- Temper: H24, H26
- Coating: PVDF or PE
- Embossed options available
PVDF Color Coated Aluminum Coil Application Areas
PVDF color coated aluminum coil serves multiple industries:
- Commercial Buildings: Curtain walls, facades, column covers, soffits
- Residential Construction: Roofing, siding, gutters, trim
- Industrial Facilities: Wall panels, roofing, ventilation systems
- Transportation: Trailer siding, bus panels, railway interiors
- Signage: Channel letters, architectural signs, display systems
- Home Appliances: Refrigerator panels, washing machine bodies
- Furniture: Cabinet doors, decorative panels, office systems
Advantages of PVDF Coating
PVDF coatings offer distinct benefits over other coating types:
- Weather Resistance: Maintains color for 20+ years in harsh conditions
- UV Protection: Resists fading and chalking from sun exposure
- Chemical Resistance: Withstands acid rain and industrial pollutants
- Temperature Stability: Performs from -40°C to +80°C
- Self-Cleaning: Nano versions shed dirt and water
- Low Maintenance: Requires minimal cleaning over service life
- Color Variety: Thousands of colors and finishes available
- Environmental Safety: Low VOC, recyclable substrate
- Aluminum Composite Panels (ACP): The top layer of most high-quality ACP is a PVDF coated coil.
- Roofing Systems: Standing seam roofs and metal tiles that need to last 30 years or more.
- Curtain Walls: Exterior cladding for rascacielos (skyscrapers) and office buildings.
- Ceiling Systems: Decorative and functional ceilings in airports, subways, and hospitals.
- Transportation: Body panels for trailers, caravans, and buses.
- Signage and Branding: High-end corporate logos and gas station canopies.
PVDF Color Coated Aluminum Coil Quality Standards and Certifications
| Standard | Description |
|---|---|
| AAMA 2605 | High-performance organic coatings |
| ASTM B209 | Aluminum sheet and plate specification |
| ASTM D3363 | Pencil hardness test |
| ASTM D2794 | Impact resistance test |
| EN 1396 | Coated aluminum for architectural use |
| ISO 9001 | Quality management systems |
| RoHS | Environmental compliance |
PVDF Color Coated Aluminum Coil Common Alloys and Tempers
The core of the PVDF color coated aluminum coil is the aluminum alloy itself. The alloy determines how strong or flexible the coil will be.
1xxx Series: Industrial Purity
Alloys like 1100 or 1050 are almost pure aluminum. They are very soft and easy to bend. These are often used for simple decorative parts or flashing where high structural strength is not required.
3xxx Series: The Standard Choice
Alloy 3003 and 3105 are the most popular for prepainted aluminum. They offer good strength and excellent corrosion resistance. These are widely used for roofing and siding.
5xxx Series: High Strength & Marine Grade
Alloys like 5005 and 5052 are much tougher. They are ideal for high-end facades and architectural projects in coastal areas because they resist salt spray perfectly.
Temper (Hardness)
We offer various tempers such as H14, H24, H16, and H26. The “H” state tells you how much the metal has been hardened. For example, H24 is “half hard” and offers a great balance between strength and bending ability.
Comparison with PE Coating
| Feature | PVDF Coating | PE Coating |
|---|---|---|
| Coating thickness | ≥ 25 microns | ≥ 18 microns |
| Weather resistance | 20–30 years | 10–15 years |
| UV resistance | Excellent | Good |
| Cost | Higher | Lower |
| Best for | Exterior, high-end | Interior, budget projects |
| Color retention | Superior | Good |
| Warranty period | 15–30 years | 5–10 years |
PVDF Color Coated Aluminum Coil PVDF vs. PE
When buying color coated coils, you will often choose between PVDF and PE (Polyester). Here is why PVDF is usually the superior choice for outdoor use.
Coating Performance Comparison
| Feature | PE (Polyester) | PVDF (Fluorocarbon) |
|---|---|---|
| Outdoor Warranty | 5 – 10 years | 20 – 30 years |
| UV Resistance | Moderate | Excellent |
| Color Retention | Fades over time | Stays vibrant for decades |
| Chemical Resistance | Low | High (Acid & Alkali resistant) |
| Price | Lower | Higher |
| Best For | Indoor / Signs | Exterior Walls / Roofing |
Diverse Product Types and Finishes
Our PVDF color coated aluminum coil comes in many “looks” to suit different architectural styles.
Solid and Metallic Colors
The most common finishes are solid colors (White, Grey, Blue) and metallic colors (Silver, Gold, Champagne). Metallic finishes contain tiny flakes that reflect light, giving the building a premium, high-tech look.
Wood Grain and Stone Patterns
Using advanced printing technology, we can make aluminum look like natural oak, walnut, marble, or granite. This allows architects to achieve a “natural” look with a material that is fireproof and lightweight.
Brushed and Embossed Coils
Brushed finishes provide a textured, industrial feel. Embossed coils (like orange peel or stucco patterns) increase the surface area and provide extra rigidity and slip resistance.
PVDF Color Coated Aluminum Coil Ordering Guide
When ordering PVDF color coated aluminum coil, specify these parameters:
| Parameter | Your Selection |
|---|---|
| Base Alloy | 3003, 3004, 3105, 5005 |
| Thickness | 0.2–3.0 mm |
| Temper | H14, H16, H18, H24, H26 |
| Width | Standard or custom |
| Coating Type | Traditional PVDF, Nano PVDF, Metallic |
| Color | RAL code or sample match |
| Gloss Level | Matte, semi-gloss, high gloss |
| Coil Weight | Per your handling capacity |
| Inner Diameter | 405 mm, 505 mm, or custom |
Storage and Handling
- Store coils indoors in dry conditions
- Maintain temperature between 5°C and 35°C
- Avoid direct sunlight before installation
- Handle with clean gloves to prevent surface damage
- Use proper lifting equipment for heavy coils
- Store vertically to prevent edge damage
- Rotate stock using first-in-first-out method
PVDF color coated aluminum coil for sale
PVDF color coated aluminum coil provides the ultimate solution for durable architectural finishes. The fluoropolymer coating delivers unmatched weather resistance and color stability. Various alloy options match specific strength and formability requirements.
Choose PVDF coating when long-term performance matters. The higher initial cost pays back through reduced maintenance and extended service life. Contact suppliers with your project specifications for customized solutions.
Why Choose PVDF Color Coated Aluminum Coil?
There are several reasons why professionals prefer this material over others:
- Extreme Weatherability: It can withstand temperatures from −50°C to +80°C without cracking or peeling.
- Self-Cleaning Property: The smooth PVDF surface makes it hard for dust and pollution to stick. Rainwater often washes the building clean.
- Lightweight: It reduces the load on the building structure compared to stone or steel.
- Fire Safety: Aluminum is non-combustible. When paired with a fire-rated core, it meets strict safety codes.
FAQ: Frequently Asked Questions
PVDF Color Coated Aluminum Coil Product and Quality Questions
What is the lifespan of PVDF coating?
In normal outdoor environments, PVDF color coated aluminum coil will maintain its color and integrity for over 20 years. Some high-spec coatings last over 30 years.
Can I get a custom color?
Yes. We can match any color from the RAL or Pantone charts. We can also match a physical sample provided by the client.
Is the coating flexible enough for bending?
Absolutely. The coating is designed to be flexible. It will not crack or peel when the aluminum is bent into shapes (T-bend test results are usually 0T to 2T).
Logistics and Ordering
What is the MOQ (Minimum Order Quantity)?
Generally, for a specific color and size, the MOQ is 2 to 3 metric tons. This depends on the specific alloy and width.
How do you protect the coil during shipping?
Each coil is wrapped in plastic film, then waterproof paper, and finally secured on a wooden pallet with steel straps. This is “Eye-to-Sky” or “Eye-to-Wall” packing.
Do you provide samples?
Yes, we can provide A4-sized color chips or small coil samples for quality testing and color approval.
