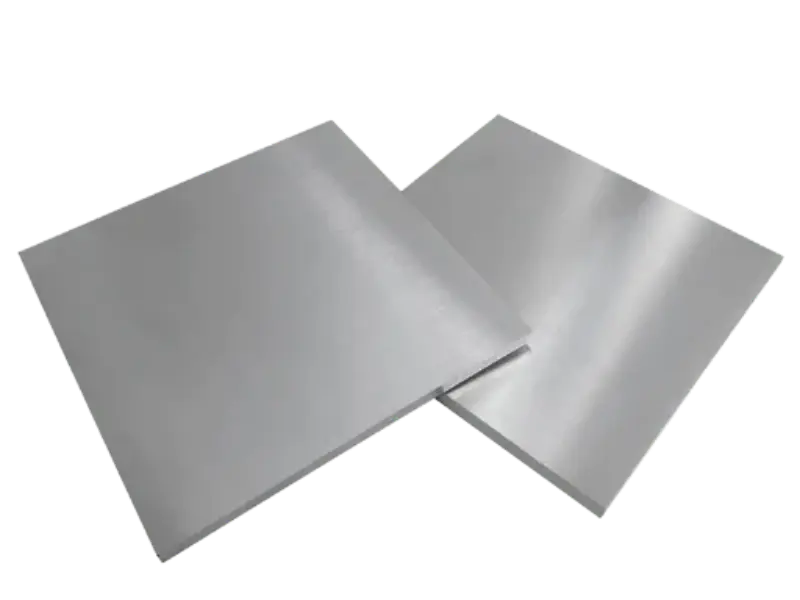

0.040 aluminum sheet is a common aluminum sheet thickness used in construction, transportation, signage, roofing, trailers, HVAC, fabrication, and general metal work. The thickness is equal to 0.040 inch, or about 1.02 mm.
This thickness offers a useful balance between weight, strength, flexibility, and cost. It is thicker than 0.032 aluminum sheet but lighter than 0.050 or 0.063 aluminum sheet.
For buyers, the right product depends on the alloy, temper, surface finish, sheet size, and final application. Common options include 5052, 3003, 3004, 6061, 1050, and 1060 aluminum sheet.
0.040 Aluminum Sheet Thickness in Inches and Millimeters
The first point to confirm when buying this product is the actual thickness.
| Thickness | Millimeters | Approx. Gauge Reference |
|---|---|---|
| 0.025 inch | 0.64 mm | Light sheet |
| 0.032 inch | 0.81 mm | Light sheet |
| 0.040 inch | 1.02 mm | Medium sheet |
| 0.050 inch | 1.27 mm | Medium-heavy sheet |
| 0.063 inch | 1.60 mm | Heavy sheet |
| 0.080 inch | 2.03 mm | Heavy sheet |
| 0.100 inch | 2.54 mm | Very heavy sheet |
0.040 inch = 1.016 mm, so it is commonly described as 1.0 mm aluminum sheet in metric markets.
Actual production thickness should be confirmed according to the agreed tolerance and applicable standard.
Why 0.040 Inch Is a Popular Aluminum Thickness
A 0.040 inch sheet is not extremely thin, but it is still easy to handle.
It can provide:
→ Better rigidity than 0.025″ or 0.032″ sheet
→ Lower weight than 0.063″ or 0.080″ sheet
→ Good cutting performance
→ Good bending performance with suitable alloys
→ Easy transportation
→ A wide range of surface finishes
This makes it useful for both commercial and industrial projects.
Common 0.040 Aluminum Sheet Alloys
Different alloys can produce very different results even when the thickness is the same.
| Alloy | General Character | Typical Uses |
|---|---|---|
| 1050 | High purity, very formable | General fabrication, insulation |
| 1060 | High purity, good conductivity | Electrical and general uses |
| 1100 | Good forming and corrosion resistance | Fabrication, HVAC |
| 3003 | Good strength and formability | Roofing, panels, HVAC |
| 3004 | Higher strength | Transportation, panels |
| 5052 | Strong, corrosion resistant | Trailers, marine, outdoor use |
| 6061 | High strength | Structural and fabricated parts |
The alloy should be selected according to the final use rather than only the material price.
0.040 5052 Aluminum Sheet
0.040 5052 aluminum sheet is a popular option for outdoor and transportation applications.
5052 contains magnesium and offers good corrosion resistance. It also has good forming characteristics in suitable tempers.
It can be considered for:
General fabrication
Trailer panels
Truck bodies
Marine components
Outdoor enclosures
Sign panels
Equipment covers
Architectural panels
5052 is often chosen when the sheet needs more strength than common 1xxx series aluminum.
0.040 5052 H32 Aluminum Sheet
5052 H32 is a useful combination for buyers who need moderate strength and good corrosion resistance.
The H32 temper means the material has been strain hardened and stabilized.
| Property | 5052 H32 |
|---|---|
| Thickness | 0.040″ |
| Approx. metric thickness | 1.02 mm |
| Strength | Medium to high |
| Corrosion resistance | Very good |
| Formability | Good |
| Welding | Good |
| Outdoor use | Suitable |
| Marine use | Common |
It can be used for trailers, panels, enclosures, marine products, and many outdoor metal parts.
0.040 3003 Aluminum Sheet
3003 aluminum sheet in 0.040 inch thickness is another common choice.
3003 contains manganese. It offers a good balance of formability, corrosion resistance, and strength.
Common uses include:
General fabrication
Roofing components
HVAC panels
Ductwork
Equipment covers
Wall panels
Decorative parts
Kitchen equipment
When the project requires easy forming and moderate strength, 3003 can be a practical option.
0.040 3003 H14 Aluminum Sheet
3003 H14 has a higher hardness than the fully annealed O temper.
It can be suitable for applications where the sheet needs to retain its shape while still allowing normal fabrication.
A typical specification may look like:
0.040″ × 48″ × 96″, 3003 H14 aluminum sheet
This is approximately:
1.02 mm × 1219 mm × 2438 mm
This format is commonly requested for fabrication and construction projects.

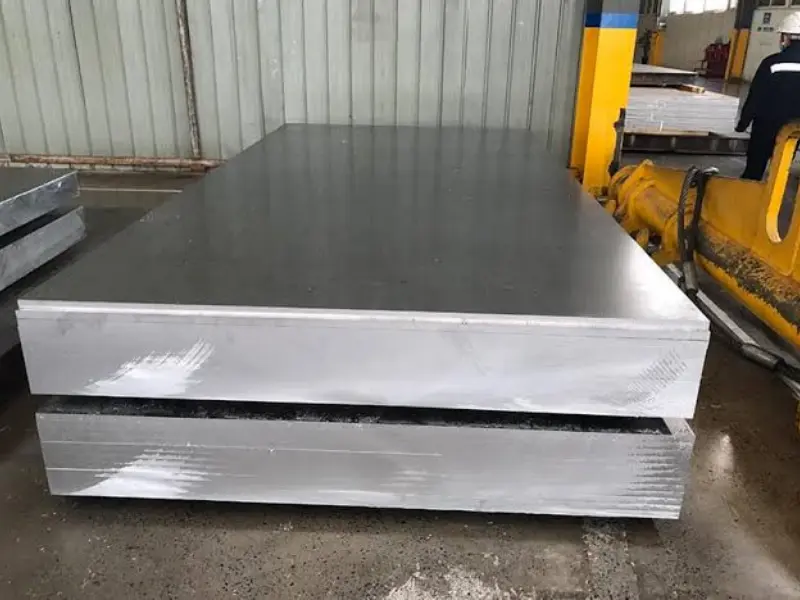

0.040 6061 Aluminum Sheet
6061 aluminum is known for its higher strength.
However, it is generally less formable than 1050, 1100, or 3003 in comparable conditions.
It may be selected for:
- Machine components
- Equipment parts
- Structural fabrication
- Transport components
- Industrial panels
- Reinforcement parts
For simple bending or deep forming, another alloy may be more suitable.

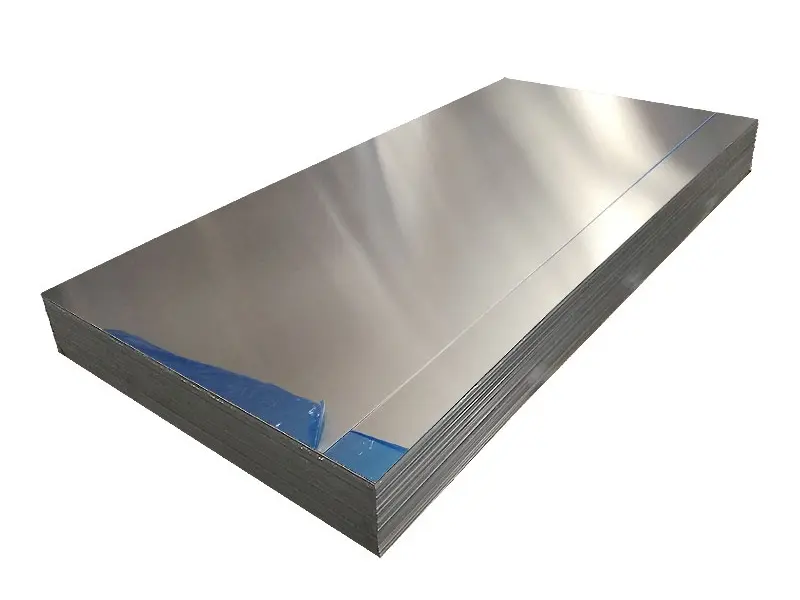

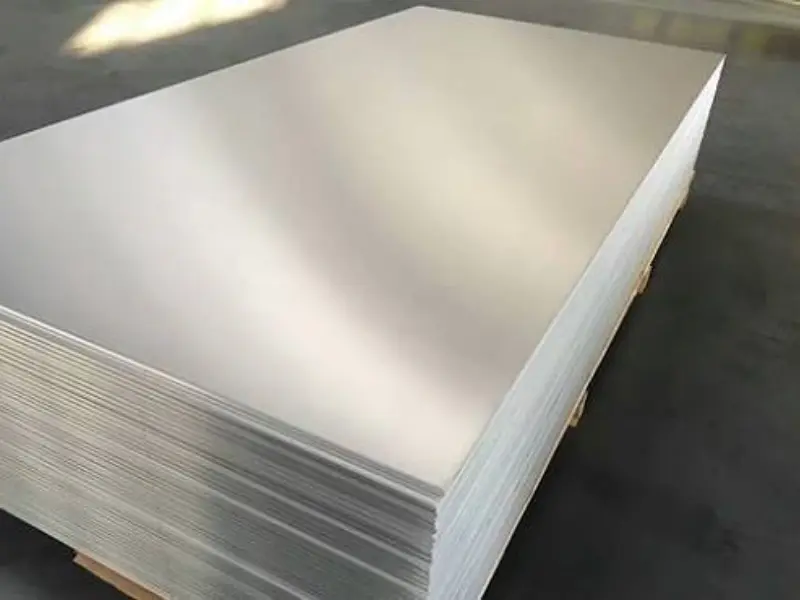

0.040 1050 and 1060 Aluminum Sheet
1050 and 1060 are high-purity aluminum grades.
They are known for good formability and corrosion resistance.
| Feature | 1050 | 1060 |
|---|---|---|
| Aluminum content | Very high | Very high |
| Formability | Excellent | Excellent |
| Corrosion resistance | Good | Good |
| Strength | Relatively low | Relatively low |
| Conductivity | High | High |
| Common use | General fabrication | Electrical and general uses |
These grades are often considered for insulation, heat-related products, decorative parts, and general sheet fabrication.
0.040 Aluminum Sheet in Different Tempers
The same alloy can be supplied in different tempers.
| Temper | General Description | Typical Requirement |
|---|---|---|
| O | Annealed | Maximum forming |
| H12 | Quarter hard | Light forming |
| H14 | Half hard | General fabrication |
| H16 | Three-quarter hard | More rigidity |
| H18 | Full hard | High hardness |
| H32 | Stabilized | Common 5052 option |
The correct temper depends on how the sheet will be processed.
For example, a curved trailer panel may need better forming ability. A flat equipment cover may benefit from a harder temper.
0.040 Aluminum Sheet Sizes
The thickness alone does not define the final product.
Common sheet dimensions include:
| Width | Length | Approx. Use |
|---|---|---|
| 24″ | 48″ | Small fabrication |
| 36″ | 72″ | General projects |
| 48″ | 96″ | Standard fabrication |
| 48″ | 120″ | Large panels |
| 60″ | 120″ | Wide panels |
| 60″ | 144″ | Large industrial work |
| Custom | Custom | Project orders |
The most common North American size is often referred to as 4×8 aluminum sheet.
0.040 Aluminum Sheet 4×8
A 0.040 aluminum sheet 4×8 is approximately:
0.040″ × 48″ × 96″
or:
1.02 mm × 1219 mm × 2438 mm
This size is convenient for many fabrication projects.
It can be used for:
- Trailer panels
- Wall panels
- Sign blanks
- Equipment covers
- Roofing parts
- HVAC panels
- Truck components
- General sheet metal work
For large projects, buyers may also request 4×10 or 5×10 sheets to reduce the number of joints.

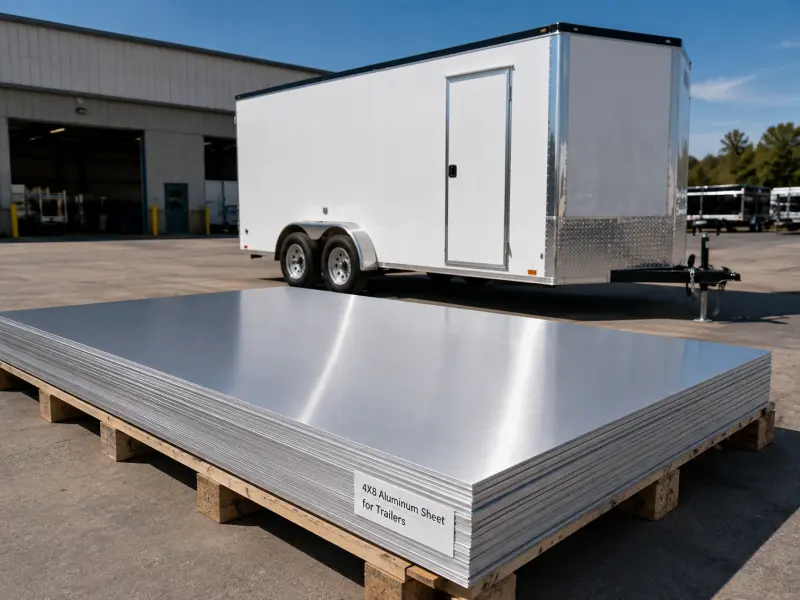

0.040 Aluminum Sheet for Trailers
Trailer manufacturing is one of the practical applications for this thickness.
The material can be used for exterior panels, interior panels, doors, trim, and other fabricated components.
Aluminum Trailer Siding
For trailer siding, 5052 and 3003 are commonly considered.
5052 → higher strength and good outdoor performance
3003 → good forming and cost balance
The final choice depends on the trailer design.
Aluminum Trailer Repair
For repair work, matching the original sheet is important.
Check:
→ Thickness
→ Alloy
→ Temper
→ Surface
→ Sheet width
→ Panel length
A 0.040 inch replacement can work well when the original construction uses a similar thickness.

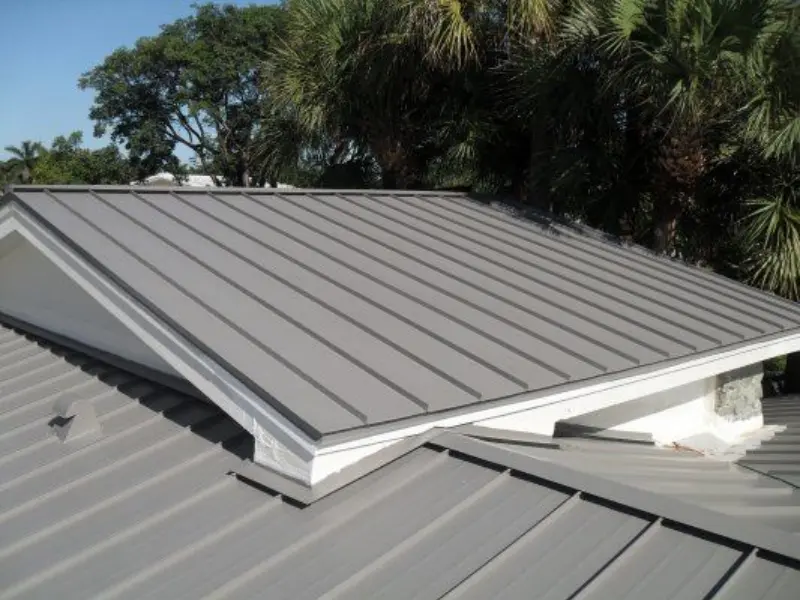

0.040 Aluminum Sheet for Roofing
Aluminum is used in many roofing-related products because it is lightweight and naturally resistant to corrosion.
The sheet can be processed into:
- Roof panels
- Flashing
- Trim
- Fascia
- Ridge components
- Edge pieces
- Decorative roofing parts
For structural roofing, however, the thickness should not be selected from appearance alone. Wind load, span, support spacing, local building codes, and installation method should be considered.
0.040 Aluminum Sheet for Siding
Aluminum siding can be used for residential, commercial, and industrial structures.
A 0.040 inch sheet provides a useful balance between flexibility and rigidity.
It can be supplied with:
- Mill finish
- Painted finish
- Powder coating
- Anodized finish
- Embossed finish
- Custom colors
For exterior projects, the coating system is also important.
0.040 Aluminum Sheet for HVAC
HVAC fabricators often need lightweight metal that can be cut and formed.
Possible uses include:
- Air ducts
- Ventilation panels
- Equipment covers
- Air conditioner components
- Insulation jackets
- Fan housings
- Sheet metal components
3003 and 1100 are common choices for many HVAC fabrication requirements.
0.040 Aluminum Sheet for Signs
The material can also be used for sign blanks.
A flat surface is often preferred for:
- Road signs
- Commercial signs
- Property signs
- Industrial signs
- Directional signs
- Advertising panels
For direct printing or graphic application, surface quality and flatness are important.
If the sheet will be printed, the buyer should confirm whether a specific coating or pretreatment is required.
0.040 Sublimation Aluminum Sheet
Sublimation aluminum usually requires a special coating.
A standard mill-finish aluminum sheet is not automatically suitable for sublimation printing.
A typical sublimation product includes:
Aluminum base
↓
Surface treatment
↓
Polymer coating
↓
Protective layer
↓
Printable surface
Common uses include:
- Photo panels
- Personalized signs
- Awards
- Home decoration
- Memorial plaques
- Promotional products
The coating quality is often more important than simply selecting the correct aluminum thickness.
0.040 Painted Aluminum Sheet
Painted aluminum combines a lightweight metal base with a colored coating.
Common colors include:
| Color | Typical Use |
|---|---|
| White | Siding and roofing |
| Black | Architecture and equipment |
| Gray | Industrial panels |
| Brown | Roofing and exterior products |
| Blue | Signs and equipment |
| Green | Architectural products |
| Custom | Brand or project requirements |
The coating can be selected according to indoor or outdoor use.
0.040 Anodized Aluminum Sheet
Anodizing creates a controlled oxide layer on the aluminum surface.
It can provide:
→ Metallic appearance
→ Better surface durability
→ Decorative finish
→ Good color consistency
Anodized aluminum is often used for architectural components, interior panels, trim, and decorative products.
0.040 Stucco Embossed Aluminum Sheet
A 0.040 stucco embossed aluminum sheet has a textured surface.
The embossed finish can make small scratches and handling marks less obvious.
It is often used for:
- Insulation
- HVAC
- Roofing
- Wall cladding
- Equipment covers
- Trailer components
- Decorative panels
The texture also gives the sheet a different visual appearance from plain aluminum.

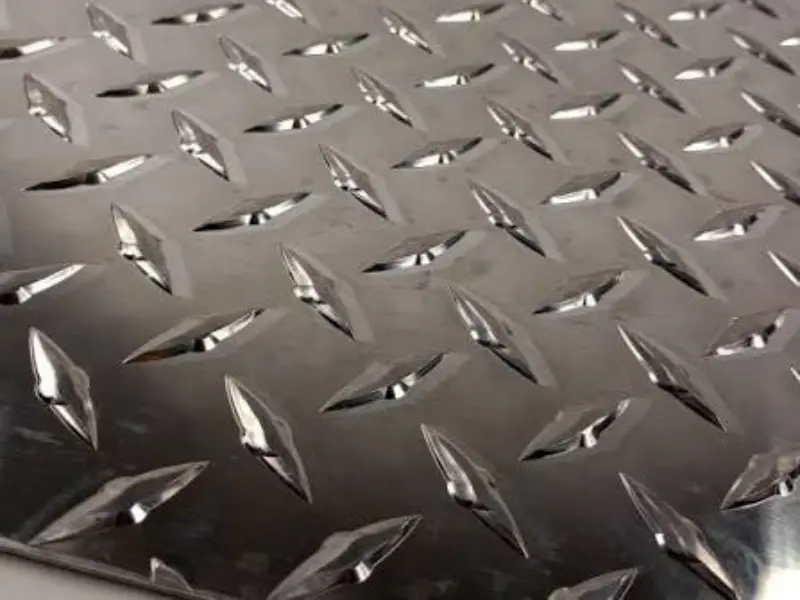

0.040 Diamond Plate Aluminum
Diamond plate has a raised pattern designed for applications where surface texture is useful.
However, the actual metal thickness and finished thickness should be clearly distinguished.
| Product | Surface |
|---|---|
| Plain aluminum sheet | Flat |
| Stucco aluminum | Textured |
| Diamond plate | Raised pattern |
| Corrugated aluminum | Corrugated pattern |
| Perforated aluminum | Holes |
| Expanded aluminum | Expanded openings |
A buyer should confirm the pattern and base thickness before ordering.
0.040 Aluminum Sheet vs 0.032 Aluminum Sheet
These two thicknesses are often compared.
| Feature | 0.032″ | 0.040″ |
|---|---|---|
| Metric | 0.81 mm | 1.02 mm |
| Weight | Lower | Higher |
| Rigidity | Lower | Higher |
| Forming | Easier | Slightly harder |
| Material cost | Lower | Higher |
| Durability | Good | Better in many uses |
| Panel feel | More flexible | More rigid |
Choose 0.032″ when low weight and easy forming are the priority.
Choose 0.040″ when a little more rigidity is useful.
0.040 Aluminum Sheet vs 0.050 Aluminum Sheet
The difference is smaller, but it can matter in larger panels.
| Feature | 0.040″ | 0.050″ |
|---|---|---|
| Thickness | 1.02 mm | 1.27 mm |
| Weight | Lower | Higher |
| Rigidity | Good | Better |
| Cost | Lower | Higher |
| Handling | Easier | Heavier |
| Large panels | Suitable | More rigid |
The choice depends on the support structure and expected load.
0.040 Aluminum Sheet vs 0.063 Aluminum Sheet
A 0.063 inch sheet is about 1.60 mm thick.
It is significantly heavier and more rigid than 0.040 inch material.
| Feature | 0.040″ | 0.063″ |
|---|---|---|
| Thickness | 1.02 mm | 1.60 mm |
| Weight | Lower | Higher |
| Rigidity | Medium | High |
| Cost | Lower | Higher |
| Forming | Easier | More demanding |
| Heavy fabrication | Limited | More suitable |
For a lightweight panel, 0.040″ may be enough.
For a heavy-duty component, 0.063″ may provide a better solution.
Approximate Weight of 0.040 Aluminum Sheet
Aluminum has a density of approximately 2.70 g/cm³.
The theoretical weight of a 4×8 sheet at 0.040 inch thickness is around 25.9 lb, or approximately 11.7 kg, before considering alloy differences and production tolerances.
| Size | Approx. Weight* |
|---|---|
| 24″ × 48″ | 6.5 lb |
| 36″ × 72″ | 14.6 lb |
| 48″ × 96″ | 25.9 lb |
| 48″ × 120″ | 32.4 lb |
| 60″ × 120″ | 40.5 lb |
| 60″ × 144″ | 48.6 lb |
*Approximate theoretical values based on 0.040 inch thickness and aluminum density. Actual weight can vary.
How to Calculate 0.040 Aluminum Sheet Weight
A simple method is:
Weight = Volume × Density
For metric calculation:
Weight = Length × Width × Thickness × Density
For example:
1.219 m × 2.438 m × 0.001016 m × 2700 kg/m³
≈ 8.2 kg
Wait—this highlights an important distinction: a 4×8 ft sheet at 0.040″ is approximately 8.2 kg, not 11.7 kg. The exact theoretical calculation should therefore be used when quoting material weight.
For shipping, always use the supplier’s actual packed weight.
How Much Does 0.040 Aluminum Sheet Cost?
The 0.040 aluminum sheet price depends on more than thickness.
Main factors include:
- Aluminum alloy
- Temper
- Surface finish
- Sheet dimensions
- Order quantity
- Market aluminum price
- Embossing
- Painting
- Anodizing
- Cutting
- Packaging
- Shipping destination
A basic mill-finish 3003 sheet may have a very different price from a painted 5052 sheet.
Buying 0.040 Aluminum Sheet in Bulk
For wholesale orders, buyers should provide a complete specification.
A useful inquiry format is:
0.040″ × 48″ × 96″, 5052 H32 aluminum sheet, mill finish, 5 tons.
For a coated product:
0.040″ × 48″ × 96″, 3003 H14 aluminum sheet, white painted finish, exterior use, 10 tons.
For trailer production:
0.040″ 5052 H32 aluminum sheet, 48″ × 96″, trailer siding, mill finish, 20 tons.
A detailed inquiry makes supplier comparison much easier.
Surface Finish Options
Different applications need different surfaces.
| Finish | Appearance | Suitable Uses |
|---|---|---|
| Mill finish | Natural aluminum | General fabrication |
| Brushed | Fine linear texture | Decoration |
| Anodized | Metallic | Architecture |
| Painted | Colored | Exterior panels |
| Powder coated | Thick colored coating | Equipment |
| Stucco embossed | Textured | Insulation |
| Diamond plate | Raised pattern | Floors and covers |
The surface should be chosen after the application is clear.
Fabrication of 0.040 Aluminum Sheet
This thickness can be processed with common fabrication methods.
Cutting
Possible methods include:
- Shearing
- Circular sawing
- CNC cutting
- Laser cutting
- Waterjet cutting
The best method depends on the required edge quality and production volume.
Bending
A suitable alloy and temper can be bent using:
- Press brakes
- Roll forming
- Sheet metal brakes
- CNC bending equipment
The minimum bend radius depends on alloy, temper, thickness, and bending direction.
Welding
Aluminum can be welded using suitable processes and filler materials.
Common methods include:
- MIG welding
- TIG welding
The welding procedure should be selected according to the alloy and final product requirements.
Tolerances for 0.040 Aluminum Sheet
Buyers should also consider tolerances.
Important dimensions include:
→ Thickness
→ Width
→ Length
→ Flatness
→ Squareness
→ Surface quality
For general fabrication, standard commercial tolerances may be sufficient.
For precision parts, tighter tolerances may need to be agreed before production.
Choosing the Right 0.040 Aluminum Sheet
A simple selection path can help.
Outdoor application
→ Consider 5052 or another suitable corrosion-resistant alloy
Easy forming
→ Consider 1050, 1060, 1100, or 3003
Trailer panels
→ Consider 5052 or 3003
HVAC
→ Consider 3003 or 1100
High strength
→ Consider 5052 or 6061
Decoration
→ Consider anodized, painted, brushed, or embossed finish
Sublimation
→ Use a dedicated sublimation-coated product
What Should Be Included on a Product Specification Sheet?
A professional specification can include:
| Item | Example |
|---|---|
| Product | Aluminum Sheet |
| Thickness | 0.040″ |
| Metric Thickness | 1.02 mm |
| Alloy | 5052 |
| Temper | H32 |
| Width | 48″ |
| Length | 96″ |
| Surface | Mill finish |
| Edge | Slit or mill edge |
| Standard | ASTM / EN / customer standard |
| Packaging | Export wooden pallet |
| Quantity | 5 tons |
This information gives buyers and suppliers a common reference.
Product Selection at a Glance
| Requirement | Suggested Direction |
|---|---|
| Lightweight panel | 0.040″ |
| More rigidity | 0.050″–0.063″ |
| Easy forming | 1050 / 1060 / 1100 / 3003 |
| Outdoor use | 5052 / suitable 3003 |
| Trailer siding | 5052 / 3003 |
| HVAC | 3003 / 1100 |
| High strength | 5052 / 6061 |
| Decorative use | Anodized / painted |
| Insulation | Stucco embossed |
| Printing | Smooth coated sheet |
| Sublimation | Sublimation-coated aluminum |
Final Guide for Buyers
0.040 aluminum sheet is a versatile thickness for buyers who need more rigidity than thin aluminum sheet without moving to a much heavier material.
The best specification is not determined by thickness alone.
Application
↓
Alloy
↓
Temper
↓
Thickness
↓
Sheet Size
↓
Surface Finish
↓
Quantity
↓
Packaging and Delivery
For trailer siding, 5052 H32 may be a useful starting point. For HVAC and general fabrication, 3003 or 1100 can be considered. For highly formable products, 1050 or 1060 may be suitable. For higher-strength fabricated parts, 5052 or 6061 may be considered.
When requesting a quotation, a complete description such as “0.040 × 48 × 96 inch, 5052 H32 aluminum sheet, mill finish” is much more useful than simply asking for the price of 0.040 aluminum sheet.
Related Aluminum Sheet Products
Buyers looking for 0.040 inch material may also compare related products:
Aluminum coil
0.025 aluminum sheet
0.032 aluminum sheet
0.050 aluminum sheet
0.063 aluminum sheet
1 mm aluminum sheet
5052 aluminum sheet
5052 H32 aluminum sheet
3003 aluminum sheet
3003 H14 aluminum sheet
6061 aluminum sheet
1050 aluminum sheet
1060 aluminum sheet
Aluminum trailer siding
Aluminum roofing sheet
Aluminum siding sheet
Aluminum sign blank
Stucco embossed aluminum sheet
Aluminum diamond plate
Painted aluminum sheet
Anodized aluminum sheet
Frequently Asked Questions About 0.040 Aluminum Sheet
What is 0.040 aluminum sheet in mm?
0.040 inch equals 1.016 mm, so it is commonly described as approximately 1.02 mm aluminum sheet.
Is 0.040 aluminum sheet the same as 1 mm?
They are very close, but they are not exactly the same. 0.040 inch is 1.016 mm, while 1 mm is approximately 0.03937 inch.
Is 0.040 aluminum sheet strong?
Its strength depends mainly on the alloy and temper. A 5052 H32 sheet will have different mechanical properties from a 1050 O sheet even though both are 0.040 inch thick.
Is 0.040 aluminum sheet good for trailers?
Yes. It can be suitable for trailer siding and panels when the alloy, temper, and design are appropriate. 5052 and 3003 are commonly considered for this type of work.
What is the best alloy for 0.040 aluminum sheet?
There is no single best alloy. 5052 is useful for outdoor and transportation applications, 3003 offers good formability, while 1050 and 1060 are useful for applications that need high purity and easy forming.
Can 0.040 aluminum sheet be bent?
Yes. Many 0.040 inch aluminum sheets can be bent. The allowable bend radius depends on the alloy and temper.
Is 0.040 aluminum sheet suitable for roofing?
It can be used for roofing components and certain roofing systems. The correct thickness must be determined from the structural design, support spacing, weather conditions, and local building requirements.
What is the weight of a 4×8 0.040 aluminum sheet?
The theoretical weight is approximately 8.2 kg, or about 18.1 lb, using a density of 2.70 g/cm³. Actual weight varies with alloy and thickness tolerance.
What is 0.040 aluminum sheet used for?
Common uses include trailers, siding, roofing components, HVAC panels, signs, equipment covers, transportation parts, insulation jackets, and general fabrication.
Can 0.040 aluminum sheet be painted?
Yes. Aluminum can be painted when the surface is properly prepared and a suitable coating system is used.
Can 0.040 aluminum sheet be anodized?
Suitable aluminum alloys can be anodized. The final appearance depends on the alloy, surface preparation, and anodizing process.
Is 0.040 aluminum sheet thicker than 0.032?
Yes. 0.040 inch is thicker than 0.032 inch. The difference is approximately 0.20 mm.
Is 0.040 aluminum sheet thicker than 0.063?
No. 0.063 inch is thicker. It is approximately 1.60 mm, compared with approximately 1.02 mm for 0.040 inch.
Can I order 0.040 aluminum sheet in custom sizes?
Yes. Many suppliers can provide custom widths and lengths, depending on production equipment and order quantity.
What information is needed for a quotation?
Provide the thickness, alloy, temper, width, length, finish, quantity, application, and delivery destination.
